24″ FHD/HD DLED TV (LE-24Z1-3663) (demo2)

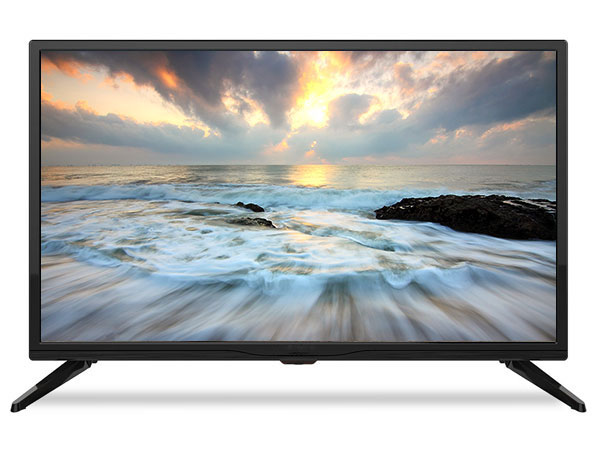

24″ FHD/HD DLED TV

Model:LE-24Z1
Solution:MSD3663S/MSD3663
Market:Asia Pacific/Europe/South America
Resolution:1920*1080/1366*768
Screen Size:24
Aspect Ratio:16:9

Category:

Description

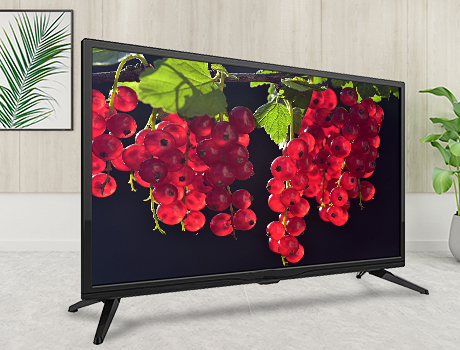

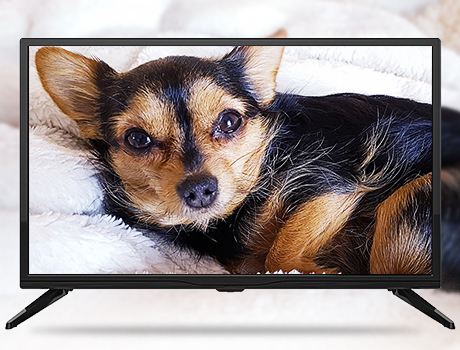

Enjoy the bright and striking content

A DLED TV is designed to present the most realistic picture, no matter it is dark black, pure white, or bright red.

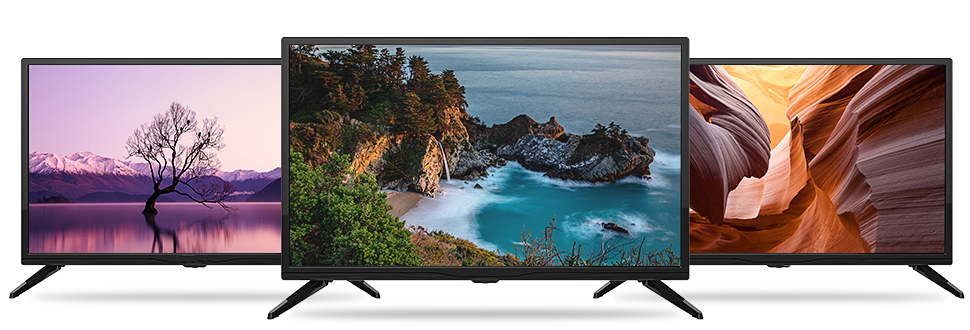

Ingenious Design for multiple scenarios

The HD crystal clear picture with bright colors makes the food more attractive and strengthen the motivation of cooking.

With 8.5ms response,the content still clear without trailing that you can enjoy the programs while exercising.

The immersive stereo sound TV makes the viewing experience better, and turns your bedroom watching into cinema experience.

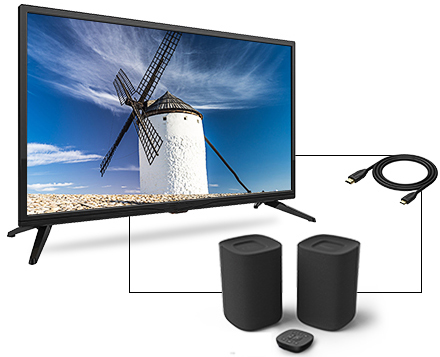

Diversified Connections

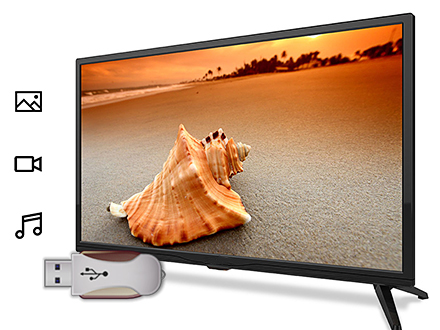

USB

Users can watch videos, play music, view
picture and get more diverse audiovisual
resources through a USB connection.

HDMI

Higher quality audio and video effects can be
achieved by connecting a variety of devices
through HDMI.

Specifications

Panel Maker

INNOLUX

Display type

DLED

Aspect ratio

16:9

Resolution

1920*1080/1366*768

Brightness

180cd/m2

Contrast

According as glass

Viewing Angle

According as glass

Maximum Colors

According as glass

Response Time

According as glass

Solution

MSD3663S/MSD3663

DTV

DVB-T/T2/C/S/S2

OS

No

Memory

8M SPI Flash

CPU/GPU

N/A

Built-in Wifi

No

Comb Filter

3D

Basic functions

EPG,Subtitle,LCN,Teletext

Video System

PAL SECAM

Progressive Scan

YES

HD Ready

YES

YPbPr Resolution

480i/p,576i/p,720i/p,1080i/p

PC Resolution (LA)

UP to 1366 x 768 @ 60Hz

PC Resolution (EU&AP)

UP to 1920×1080 @ 60Hz

Color Temperature Adjustment

YES

Audio System

B/G,D/K,I

Stereo Sound

NICAM

Maximum Audio Output

2×3W

Equalizers

YES(4 Modes)

Effects

YES

EARPHONE

1

VGA

1

SCART

1 (EU)

PC Audio In

1

S2

1 (EU)

TV

1 (AP+EU)

COAXIAL

1

HDMI

1

USB

1

MINI AV

1 (EU)

MINI YPBPR

1 (EU)

CI

1

L/R AUDIO IN

1

CVB/YPBPR

1

YPBPR

1

Power Requirement

100-240 50/60Hz

Power consumption(Operation)

≦36W

Power consumption(Standby)

≦0.5W

ETL

/

FCC

/

UL

/

Remote controller(English)

YES

Wall-mount Bracket

OPTIONAL

Remote Batteries

YES

User Manual

YES

Stand

YES

Packing

Unit(mm)

551*328.4*70.3

1Pc/1Carton(mm)

623*123*395

Net(Kg)

2.42

1Carton(Kg)

3.2

40HQ

2200PCS
