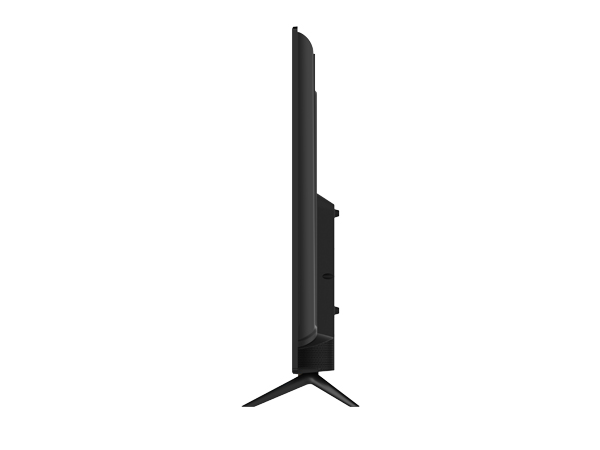

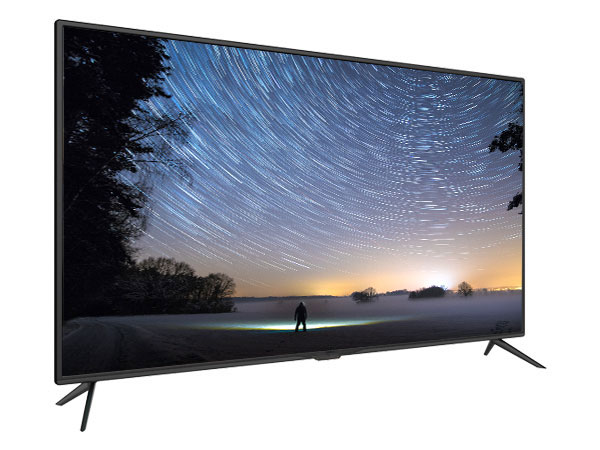

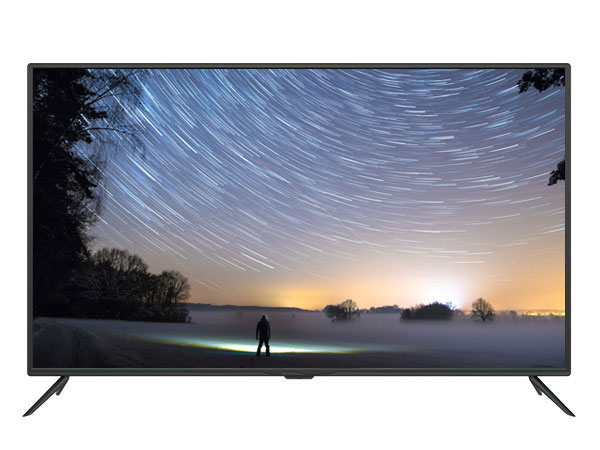

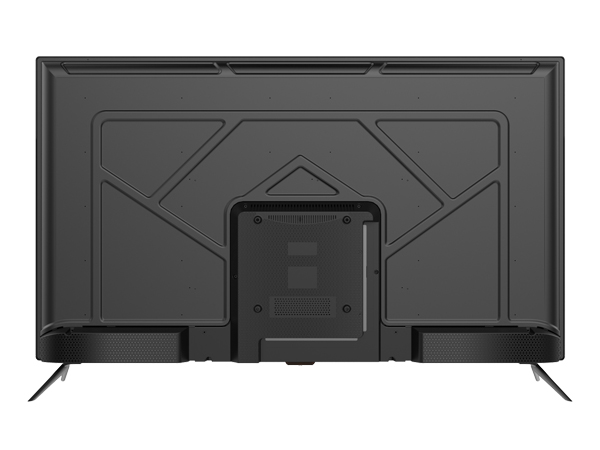

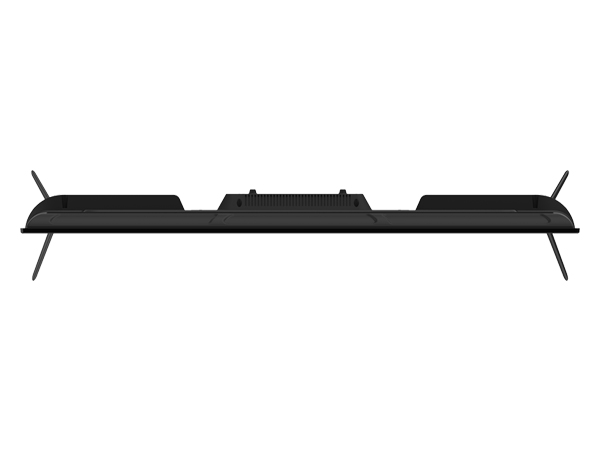

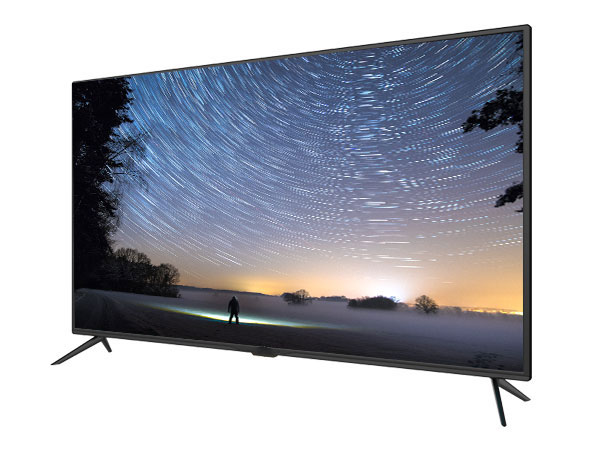

55″ UHD DLED TV
Model：LE-55Z1-3663
Solution：MSD5522/MT5522
Market：Asia Pacific/Europe/South America
Resolution：1920*1080/3840*2160
Screen Size：55 Inches
Aspect Ratio：16:9
Model：LE-55Z1-3663
Solution：MSD5522/MT5522
Market：Asia Pacific/Europe/South America
Resolution：1920*1080/3840*2160
Screen Size：55 Inches
Aspect Ratio：16:9
Panel Maker
CSOT/AUO/SAMSUNG
Display type
DLED
Aspect ratio
16:9
Resolution(EU+LA)
3840*2160
Resolution(AP)
1920*1080
Brightness
280cd/m2
Contrast
4500:1
Viewing Angle
178°* 178°
Maximum Colors
16.7M
Response Time
6.5ms
Video System(AP+EU)
PAL SECAM
Progressive Scan
YES
HD Ready
YES
YPbPr Resolution
480i/p,576i/p, 720i/p,1080i/p
PC Resolution
UP to 1920×1080 @ 60Hz
Color Temperature Adjustment
YES
Audio System(EU+AP)
B/G,D/K,I
Audio System(LA)
M/N
Stereo Sound(EU+AP)
NICAM
Stereo Sound(LA)
YES
Maximum Audio Output(EU)
2×10W
Maximum Audio Output(AP+LA)
2×8W
Equalizers
YES(4 Modes)
Effects
YES
AV IN(AP+LA)
1
CI(AP+EU)
1
COAXIAL
1
EARPHONE(LA)
1
EARPHONE OUT(AP+EU)
1
HDMI
3
MINI AV(EU)
1
MINI YPBPR(EU)
1
PC AUDIO IN
1
RJ45(LA)
1
S2(AP+EU)
1
SCART(EU)
1
TV(AP+EU)
1
USB(AP+EU)
1
USB(LA)
2
VGA(AP+EU)
1
VGA(D-Sub 15pin)(LA)
1
YPBPR(LA)
1
Power Requirement
100-240 @50/60Hz
Power consumption(Operation)
≦135W
Power consumption(Standby)
≦0.5W
ETL
NO
FCC
NO
UL
NO
Remote controller(English)
YES
Wall-mount Bracket
OPTIONAL
Remote Batteries
YES
User Manual
YES
Stand
YES
