27″ F Series Monitor – LM-27F1
Model:LM-27F1
Resolution:1920*1080
Contrast: 3000 : 1
Response Time:12ms Typ
Max. display frequency:1920*1080 75Hz for VGA 、HDMI
Screen Size:27 Inches
Aspect Ratio:16:9
Model:LM-27F1
Resolution:1920*1080
Contrast: 3000 : 1
Response Time:12ms Typ
Max. display frequency:1920*1080 75Hz for VGA 、HDMI
Screen Size:27 Inches
Aspect Ratio:16:9
F Series Business Monitors
The new Express LUCK F Series business monitors are designed for work and entertainment at your office or at home. Available from 22” to 27” with two colors that can match your professional workplace.
True Color in FHD
Presenting clear, true color images by FHD, which displays colors richly and accurately. FHD display makes your beautiful photos and graphics come alive.
Flexibility and Style

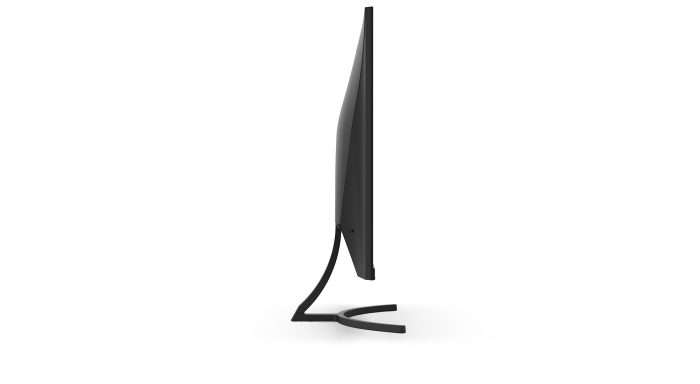

With our incredibly slim design monitor and three types of stands, you can choose a suitable stand according to your style and the one best fit in your desk.
USB Type-C™ High-Performance Connection
The monitor has the latest USB Type-C connection that supports 15W charging. You can enjoy the convenience of image and data transfer by charging by one cable and synchronizing the monitor with devices like laptops and smartphones.
Curved / flat
Flat
OC
AUO M270HVN02.0
Surface Treatment
Anti-Glare,Haze 25%, Hard Coating (3H)
Panel type (Display Mode)
VA panel
Brightness(Typical)
250 cd/m2 (Typ.)
Contrast(Typical)
3000 : 1
Pixel Pitch(mm)
0.31125(H) *0.31125(V)
Resolution (H x V)
1920*1080
Aspect Ratio
16:9
Response Time(Typical)
12ms Typ
View Angles LR,UD(CR=10)
178°(H) /178°(V)
Display Colors
16.7M
NTSC(Area)
72%
Anti-flicker
Yes
G-Sync
NA
Free Sync
Ready
Anti-Bluelight
Yes
HDR/DCR
HDR 10
Over Drive
NA
Anti-glare
Yes
Daisy Chain
NA
Horizontal Freq.
55k~90KHz
Vertical Freq.
50 to 76HZ
Max. display frequency
(Resolution H*V/Fv)
1920*1080 75Hz for VGA 、HDMI
VGA
x1
HDMI1.4
x1
Type-C
Yes
Output Type-C
Output 18W MAX
Earphone
x1
Speaker(Typical, Amplifier output)
optional 4Ω 2W*2 (mainboard support 2W*2)
Back Control
Yes
On Screen Display
12 Language: English, French, German, Chinese, Italian, Spanish, Portuguese, Turkish, Polish, Dutch, Korean, Japanese
Color
6500、7500、9300、User
Preset Mode
GAME、MOVIE、PHOTO、STADNARD
Consumption(Typical)
On: <48 W
Standby<=0.5W, Off<=0.5W
AC Power Range
100-240V~, 50/60Hz
Power Mode
Adaptor 12V4A
Tilt
-5°~15°(+/-2°)
High Adjustable Arm
optional
Swivel
optional
Kensington Lock
Yes
VESA Mounting
100×100 (screw hole: 4 holes with M4 x 8 mm)
Power Adaptor
Plug-in adaptorx1
HDMI Cable(1.5m)
x1
Stands
Assembling stand and base with one M5*10mm screw, the stand and monitor should be easy install , no need screw
User Manual
x1
With Stand(W*D*H)
613.0*443.77*170.1mm (metal stand /base)
613.0*460.54*188.03mm (VESA stand /base)
Without Stand(W*D*H)
613.0*361.45*56.1mm
With Package(W*D*H)
673*114*421mm
Loading alibilty
W/O Pallet
20′ GP/40GP/ 40′ HQ
938/1928/2196
Loading alibilty
20′ GP/40GP/ 40′ HQ
700/1470/1596
Pallet
20′ GP/40GP/ 40′ HQ
10/21/21
