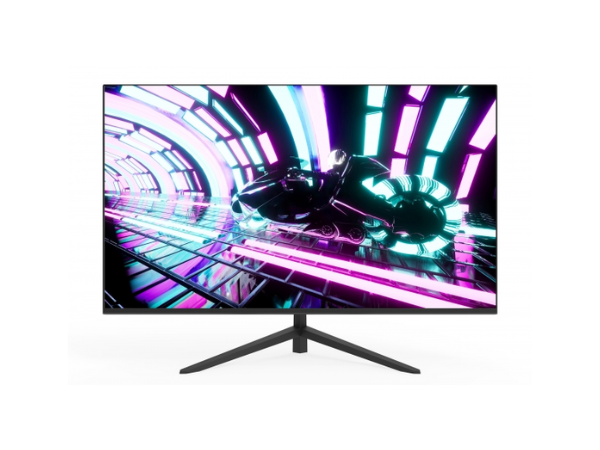

24″ X2 Series Monitor – LM-24X
Model：LM-24X
Resolution：1920*1080
Contrast: 3000 : 1
Response Time：16ms Typ
Max. display frequency：1920*1080 75Hz for all HDMI, VGA, and USB Type-C input
Screen Size：23.8 Inches
Aspect Ratio：16:9
24″ X Series Monitor (LM-24X)
描述
X series Smart Monitor
The new Express LUCK X Series smart monitor is with complete independent functionality and comes with AndroidTV OS and remote control. Available from 24” to 32”. Accommodate your needs for both productivity and entertainment.
True Color in FHD
Presenting clear, true color images by FHD, which displays colors richly and accurately. FHD display makes your beautiful photos and graphics come alive.
Entertainment tailored for you
You can access over 700,000 movies and shows on the AndroidTV OS and control your device with voice without connecting to a separate PC.
Apps on your big screen
Enjoy entertainment like Netflix, YouTube, Disney+ and other apps which can download from Google Play.
Specifications
Curved / flat
Flat
OC
AUO / CSOT
Surface Treatment
Anti-Glare, 3H
Panel type (Display Mode)
VA panel
Brightness(Typical)
220 cd/m2 (Typ.)
Contrast(Typical)
3000 : 1
Pixel Pitch(mm)
0.2745(H) *0.2745(V)
Resolution (H x V)
1920*1080
Aspect Ratio
16:9
Response Time(Typical)
16ms Typ
View Angles LR,UD(CR=10)
178°(H) /178°(V)
Display Colors
16.7M
NTSC(Area)
72%
Horizontal Freq.
52.9 to 88.1KHz
Vertical Freq.
60 to 76HZ
Max. display frequency
(Resolution H*V/Fv)
1920*1080 75Hz for all HDMI, VGA, and USB Type-C input
VGA
x1
HDMI1.4
x1 (HDCP 1.4)
Type-C(DP)
Yes
Output Type-C
USB PowerDelivery 18W（Support 18W Full Power output When LCD is off) ＆ DisplayPort Alternative Mode
Audio Out
Yes
Earphone
Yes
Speaker(Typical, Amplifier output)
optional 4Ω 2W*2
Front Control
NA
On Screen Display
12 Language: English, French, German, Chinese, Italian, Spanish, Portuguese, Turkish, Polish, Dutch, Korean, Japanese
Color
6500、7500、9300、User
Preset Mode
GAME、MOVIE、PHOTO、STADNARD
Consumption(Typical)
On: <36 W
Standby<=0.5W, Off<=0.5W
AC Power Range
DC 12V4A （PSE) 48W
Power Mode
Adapter
